Multi-Position Magnetic Stirrers

$874.00$1,242.00

This multi-position magnetic Stirrer is designed for the parallel and series experiment. The front control panel has the ability to detach from the main unit. This unique feature allows the main stirring base to be placed & operated in a water bath. An ideal and versatile instrument for many lab applications.

Features

  • Super-flat stainless steel plate protects against intrusion and guarantees reliability.

  • Fully closed body is able to stir in a water bath.

  • Magnetic coil drive mechanism provides long & quiet operation.

  • Five levels of stirring power provide excellent mixing capability, including liquids with high viscosity.

  • Previous setting will be automatically saved when restarting the unit.

  • Exterior is specifically designed to prevent leaking.

Clear
SKU: N/A Categories: ,

Description

This multi-position magnetic Stirrer is designed for the parallel and series experiment. The front control panel has the ability to detach from the main unit. This unique feature allows the main stirring base to be placed & operated in a water bath. An ideal and versatile instrument for many lab applications.

Features

  • Super-flat stainless steel plate protects against intrusion and guarantees reliability.

  • Fully closed body is able to stir in a water bath.

  • Magnetic coil drive mechanism provides long & quiet operation.

  • Five levels of stirring power provide excellent mixing capability, including liquids with high viscosity.

  • Previous setting will be automatically saved when restarting the unit.

  • Exterior is specifically designed to prevent leaking.

Additional information

Magnetic Stirrers Positions

15 Position MS-15SUA, 4 Postion MS-04SUA, 6 Position MS-06SUA

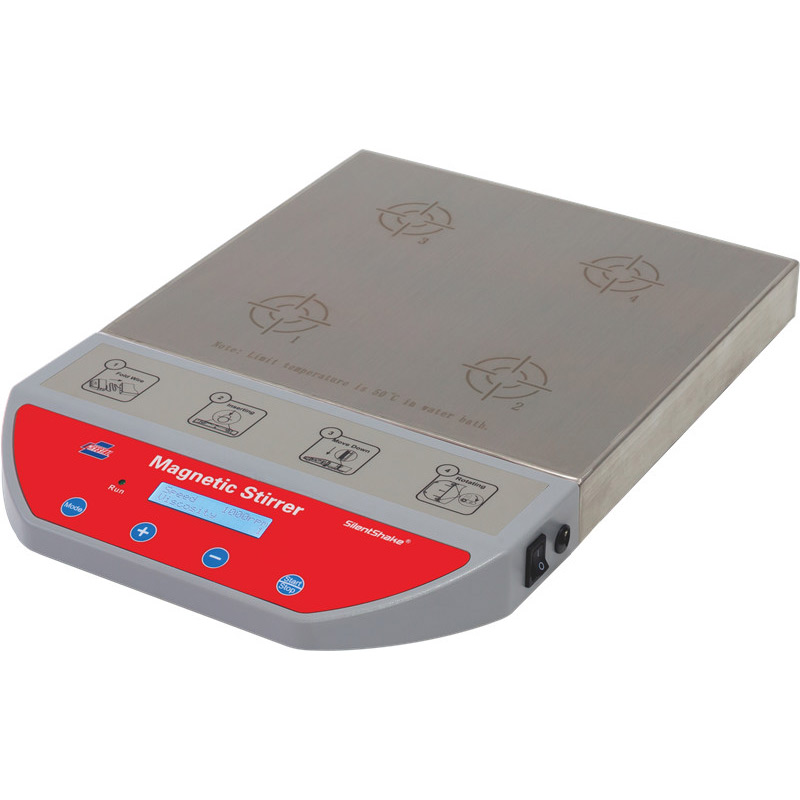

Specifications - 4 Position

Model MS-04SUA
Stirring Speed 80~2000rpm
Maximum Capacity 2L
Platform Size 250×270mm
Material of Top Plate SUS304 Stainless steel
Outside Dimensions (W×D×H)
Viscosity Level 5 Levels
Number of Stirring Positions 4
Distance between stirring positions 128mm
Net Weight 6.5kg
Power 30W
Ambient Temperature 5℃~50℃ (Water), 0℃~40℃ (Air)
Power Supply AC 100V~240V / 50Hz~60Hz
Protection Level (DIN EN60529) IP21(Line of Control), IP68S(Host Module)

Note:MS-04SU、MS-06SU speed parameters are defined with Ø12 × 30 stir in 1L beaker filled with aqueous solution fully;

MS-15SU speed parameters are defined with Φ5×15 stir in 100ml beaker filled with aqueous solution fully.

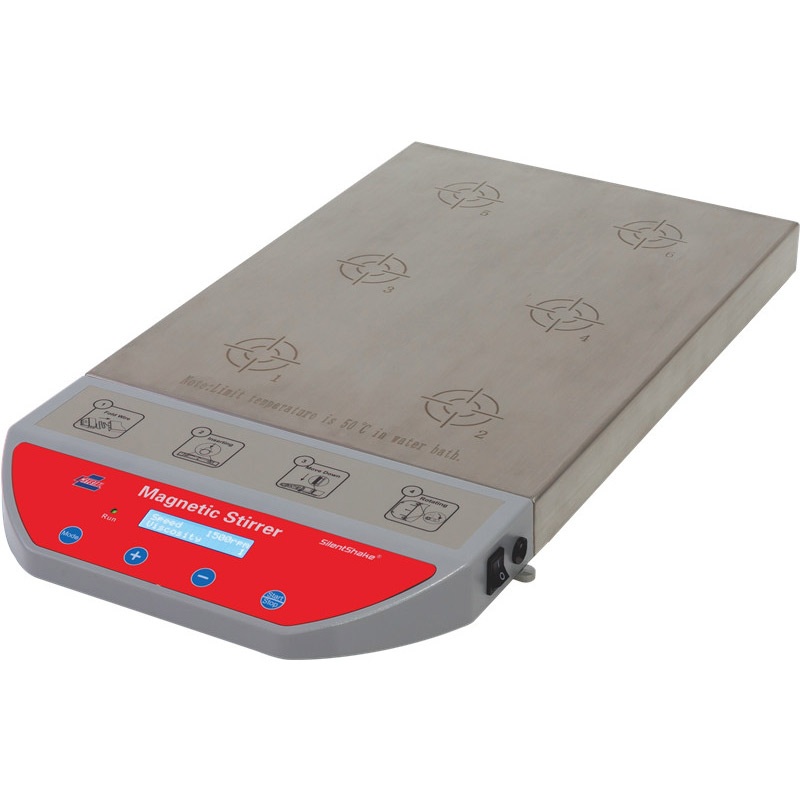

Specifications - 6 Positon

Model MS-06SUA
Stirring Speed 80~2000rpm
Maximum Capacity 2L
Platform Size 385×270mm
Material of Top Plate SUS304 Stainless steel
Outside Dimensions (W×D×H) 528×280×40mm
Viscosity Level 5 Levels
Number of Stirring Positions 6
Distance between stirring positions 128mm
Net Weight 10kg
Power 45W
Ambient Temperature 5℃~50℃ (Water), 0℃~40℃ (Air)
Power Supply AC 100V~240V / 50Hz~60Hz
Protection Level (DIN EN60529) IP21(Line of Control), IP68S(Host Module)

Note:MS-04SU、MS-06SU speed parameters are defined with Ø12 × 30 stir in 1L beaker filled with aqueous solution fully;

MS-15SU speed parameters are defined with Φ5×15 stir in 100ml beaker filled with aqueous solution fully.

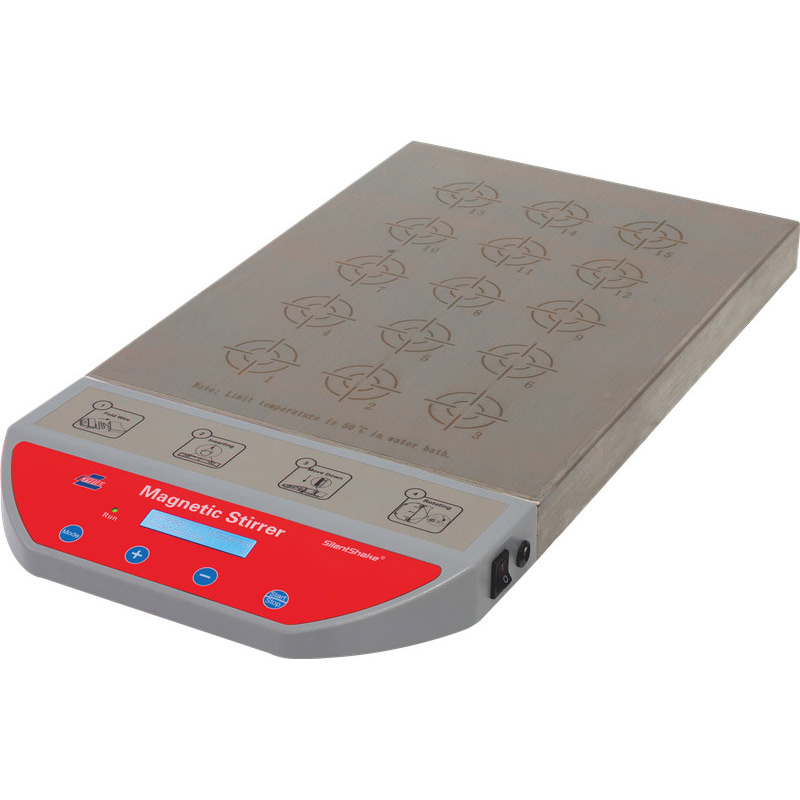

Specifications - 15 Position

Model  MS-15SUA
Stirring Speed 80~2000rpm
Maximum Capacity 500ml
Platform Size 385×270mm
Material of Top Plate SUS304 Stainless steel
Outside Dimensions (W×D×H) 528×280×40mm
Viscosity Level 5 Levels
Number of Stirring Positions 15
Distance between stirring positions 64mm
Net Weight 6.5kg 10kg
Power 30W 45W
Ambient Temperature 5℃~50℃ (Water), 0℃~40℃ (Air)
Power Supply AC 100V~240V / 50Hz~60Hz
Protection Level (DIN EN60529) IP21(Line of Control), IP68S(Host Module)

Note:MS-04SU、MS-06SU speed parameters are defined with Ø12 × 30 stir in 1L beaker filled with aqueous solution fully;

MS-15SU speed parameters are defined with Φ5×15 stir in 100ml beaker filled with aqueous solution fully.

Crystal Technology Warranty

Crystal Technology proudly provides a full 2 Year Replacement Warranty on all of its products to be free of manufacturer defect.  Product misuse or damage, not caused by manufacture defect do not qualify for warranty replacement.
